Wavefronts, Coherence, Fermat's Principle, and Cardinal Points
Electromagnetic light, wavefront propagation, Huygens construction, coherence, reflection and refraction, mirror and lens formulae, and cardinal points.
Electromagnetic nature of light
In charge-free vacuum, Maxwell’s equations include
\[\boldsymbol\nabla\cdot\mathbf E=0, \quad \boldsymbol\nabla\cdot\mathbf B=0, \quad \boldsymbol\nabla\times\mathbf E=-\frac{\partial\mathbf B}{\partial t}, \quad \boldsymbol\nabla\times\mathbf B=\mu_0\epsilon_0 \frac{\partial\mathbf E}{\partial t}.\]Take the curl of Faraday’s law and use the vector identity
\[\boldsymbol\nabla\times(\boldsymbol\nabla\times\mathbf E) =\boldsymbol\nabla(\boldsymbol\nabla\cdot\mathbf E)-\nabla^2\mathbf E.\]It follows that
\[-\nabla^2\mathbf E =-\mu_0\epsilon_0\frac{\partial^2\mathbf E}{\partial t^2}.\]The same step applied to $\mathbf B$ gives
\[\boxed{\nabla^2\mathbf E=\frac1{c^2}\frac{\partial^2\mathbf E}{\partial t^2}}, \qquad \boxed{\nabla^2\mathbf B=\frac1{c^2}\frac{\partial^2\mathbf B}{\partial t^2}},\]with
\[\boxed{c=\frac1{\sqrt{\mu_0\epsilon_0}}}.\]For a plane wave, Maxwell’s curl equations require
\[\boxed{\mathbf E\perp\mathbf B\perp\mathbf k}, \qquad \boxed{B_0=\frac{E_0}{c}}.\]The energy flow is along $\mathbf E\times\mathbf B$, the direction of propagation.
Wavefronts, Huygens’s principle, and coherence
A wavefront is a surface of constant phase. Rays are normal to wavefronts in an isotropic medium. Plane waves have parallel plane wavefronts; point sources have concentric spherical wavefronts. Successive fronts whose phases differ by $2\pi$ are separated along a ray by one wavelength $\lambda=v/f$.
Huygens’s principle states that every point of a wavefront acts as a source of secondary wavelets. After time $\Delta t$, each wavelet has advanced by $v\Delta t$, and their forward envelope is the new wavefront. At a boundary, the construction uses speed $v_1$ before the boundary and $v_2$ after it. Its geometry gives
\[\frac{\sin i}{\sin r}=\frac{v_1}{v_2}=\frac{n_2}{n_1},\]which is Snell’s law.
Temporal coherence is phase correlation at one point at different times. A source of frequency width $\Delta\nu$ has an order-of-magnitude coherence time and length
\[\tau_c\sim\frac1{\Delta\nu}, \qquad \boxed{\ell_c=v\tau_c}.\]Stable interference requires an optical-path difference no greater than the source’s coherence length. Spatial coherence is phase correlation at different points of the same wavefront; it determines whether separated apertures can act as mutually coherent sources.
Fermat’s principle and the ray laws
For refractive index $n$, the optical path between $A$ and $B$ is
\[\boxed{\mathcal L=\int_A^B n\,ds}.\]Fermat’s principle states that the physical ray makes the first variation stationary:
\[\boxed{\delta\mathcal L=0}.\]Let a ray cross a plane interface at a variable horizontal coordinate $x$. If the fixed endpoints are at perpendicular distances $a$ and $b$, with horizontal separation $d$, then
\[\mathcal L(x)=n_1\sqrt{a^2+x^2} +n_2\sqrt{b^2+(d-x)^2}.\]Stationarity gives
\[0=\frac{d\mathcal L}{dx} =n_1\frac{x}{\sqrt{a^2+x^2}} -n_2\frac{d-x}{\sqrt{b^2+(d-x)^2}}.\]The two ratios are $\sin i$ and $\sin r$, so
\[\boxed{n_1\sin i=n_2\sin r}.\]The incident ray, refracted ray, and interface normal are coplanar. For reflection, both segments lie in the same medium; the same variation gives $\sin i=\sin r$, and for $0\le i,r<\pi/2$,
\[\boxed{i=r}.\]The incident ray, reflected ray, and normal are also coplanar.
Spherical surface, thin lens, and spherical mirror
Use the Cartesian sign convention: light travels from left to right, the vertex is the origin, and distances to the right are positive. Thus a real object on the left has $u<0$.
At height $h$ on a paraxial spherical refracting surface, the signed small-angle geometry gives
\[i\simeq-\frac hu+\frac hR, \qquad r\simeq-\frac hv+\frac hR.\]Substituting these into $n_1i=n_2r$ and cancelling $h$ yields
\[\boxed{\frac{n_2}{v}-\frac{n_1}{u} =\frac{n_2-n_1}{R}}.\]For the first surface of a thin lens in air,
\[\frac n{v_1}-\frac1u=\frac{n-1}{R_1}.\]For the second surface, whose separation from the first is neglected,
\[\frac1v-\frac n{v_1}=\frac{1-n}{R_2}.\]Adding eliminates the intermediate image:
\[\boxed{\frac1v-\frac1u=\frac1f}, \qquad \boxed{\frac1f=(n-1)\left(\frac1{R_1}-\frac1{R_2}\right)}.\]Reflection can be represented in the surface equation by replacing the refracted index by $-n_1$. This gives the paraxial spherical-mirror formula
\[\boxed{\frac1v+\frac1u=\frac2R=\frac1f}, \qquad \boxed{f=\frac R2}.\]Under this convention a concave mirror has $R<0$ and $f<0$.

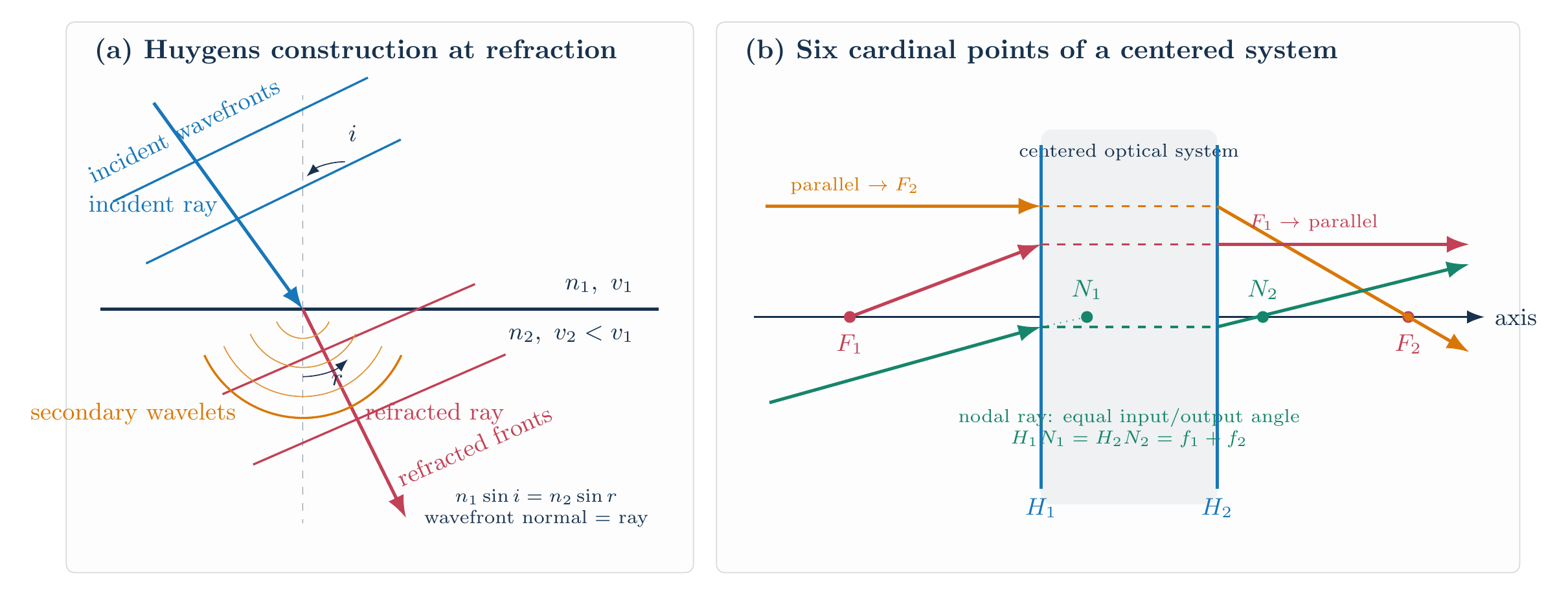

The six cardinal points
A centered paraxial optical system has three pairs of cardinal points:
- Principal points $H_1,H_2$. Their perpendicular planes are conjugate with unit transverse magnification. Object distance $s$ is measured from the first principal plane and image distance $s’$ from the second.
- Focal points $F_1,F_2$. A ray directed toward the front focus $F_1$ emerges parallel to the axis. A parallel incident ray emerges through the rear focus $F_2$. Planes normal to the axis through these points are the focal planes.
- Nodal points $N_1,N_2$. A ray directed toward $N_1$ emerges as if from $N_2$ with the same physical angle to the axis.
If the system power is $\Phi$, the Gaussian equation referred to the principal planes is
\[\boxed{\frac{n_2}{s'}-\frac{n_1}{s}=\Phi}.\]Putting the image or object at infinity gives the oriented front and rear focal lengths:
\[\boxed{f_1=H_1F_1=-\frac{n_1}{\Phi}}, \qquad \boxed{f_2=H_2F_2=\frac{n_2}{\Phi}}.\]The nodal-point offsets are
\[\boxed{H_1N_1=H_2N_2 =\frac{n_2-n_1}{\Phi}=f_1+f_2}.\]Therefore, when the entrance and exit media have the same refractive index, $N_1=H_1$ and $N_2=H_2$. These definitions and reference planes allow a thick multi-element system to be treated by the same Gaussian imaging equation as a single equivalent element.
