Lattice Dynamics and Specific Heat
Monatomic and diatomic chains, acoustic and optical phonons, phonon spectra, and the Dulong-Petit, Einstein, and Debye heat capacities.
Atoms in a crystal oscillate about equilibrium positions. For sufficiently small displacements, the interatomic potential may be truncated after its quadratic term; the coupled motion then separates into normal modes, and quantization of those modes produces phonons.
Harmonic approximation
Let $u_n$ be a displacement from equilibrium. Expanding a bond energy about its minimum separation gives
\[V=V_0+\left(\frac{dV}{du}\right)_0u +\frac12\left(\frac{d^2V}{du^2}\right)_0u^2+O(u^3).\]Mechanical equilibrium makes the linear term zero. Defining the force constant
\[C=\left(\frac{d^2V}{du^2}\right)_0>0\]gives $V-V_0=Cu^2/2$. The SI unit of $C$ is $\mathrm{N\,m^{-1}}$.
Monatomic linear chain
Take identical masses $M$ separated by $a$, with nearest-neighbour springs of constant $C$. The right and left spring forces on atom $n$ are
\[F_n^{(R)}=C(u_{n+1}-u_n), \qquad F_n^{(L)}=-C(u_n-u_{n-1}).\]Therefore
\[\boxed{M\ddot u_n=C(u_{n+1}+u_{n-1}-2u_n)}.\]Use a normal mode
\[u_n=u\,e^{i(kna-\omega t)}.\]Then $u_{n\pm1}=u_ne^{\pm ika}$ and $\ddot u_n=-\omega^2u_n$, so
\[-M\omega^2=C(e^{ika}+e^{-ika}-2) =2C(\cos ka-1).\]Since $1-\cos ka=2\sin^2(ka/2)$,
\[\boxed{\omega(k)=2\sqrt{\frac CM}\left\lvert\sin\frac{ka}{2}\right\rvert}.\]Born-von Karman boundary conditions $u_{n+N}=u_n$ require
\[e^{ikNa}=1, \qquad k=\frac{2\pi s}{Na}.\]There are $N$ inequivalent values in the first Brillouin zone $-\pi/a<k\leq\pi/a$. Near its centre, $\lvert ka\rvert\ll1$, so
\[\omega\simeq a\sqrt{\frac CM}\lvert k\rvert, \qquad v_s=\left\lvert\frac{d\omega}{dk}\right\rvert_{k\to0}=a\sqrt{\frac CM}.\]At $k=0$ all atoms translate in phase and no spring is stretched; hence $\omega=0$. At $k=\pi/a$ adjacent atoms move oppositely and $\omega_{\max}=2\sqrt{C/M}$.
Diatomic linear chain
Let a primitive cell of length $a$ contain masses $M_1$ at $na$ and $M_2$ at $na+a/2$. If $u_n$ and $v_n$ are their displacements, nearest-neighbour forces give
\[M_1\ddot u_n=C(v_n+v_{n-1}-2u_n),\] \[M_2\ddot v_n=C(u_n+u_{n+1}-2v_n).\]Choose phases at the equilibrium positions:
\[u_n=Ue^{i(kna-\omega t)}, \qquad v_n=Ve^{i[k(na+a/2)-\omega t]}.\]Then
\[v_n+v_{n-1}=2V\cos\frac{ka}{2}\,e^{i(kna-\omega t)},\]and similarly $u_n+u_{n+1}=2U\cos(ka/2)e^{i[k(na+a/2)-\omega t]}$. Thus
\[\begin{pmatrix} 2C-M_1\omega^2&-2C\cos(ka/2)\\ -2C\cos(ka/2)&2C-M_2\omega^2 \end{pmatrix} \begin{pmatrix}U\\V\end{pmatrix}=0.\]A nonzero eigenvector requires
\[(2C-M_1\omega^2)(2C-M_2\omega^2) -4C^2\cos^2\frac{ka}{2}=0,\]or
\[M_1M_2\omega^4-2C(M_1+M_2)\omega^2 +4C^2\sin^2\frac{ka}{2}=0.\]Solving the quadratic in $\omega^2$ gives

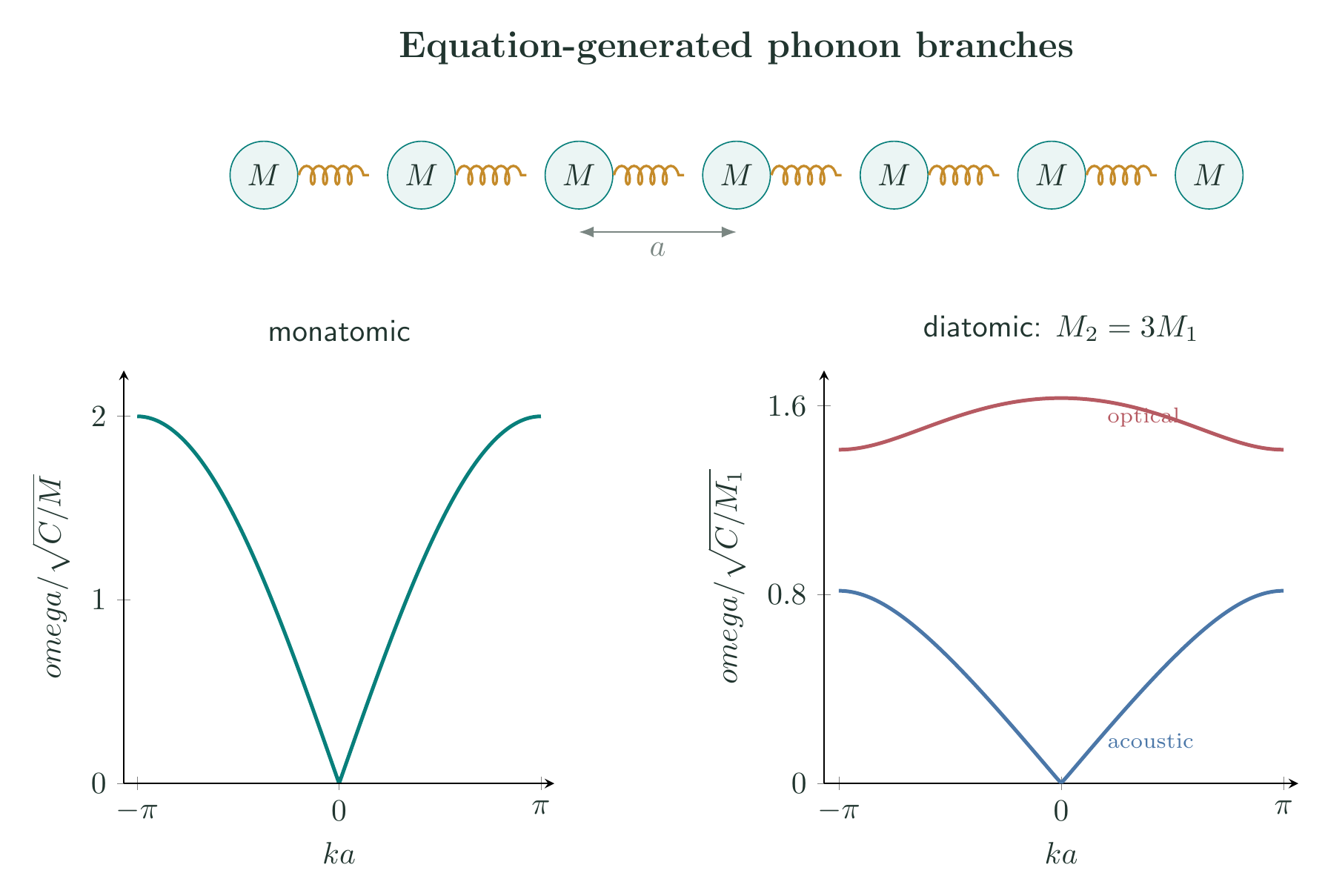

\[\boxed{ \omega_{\pm}^2=C\left(\frac1{M_1}+\frac1{M_2}\right) \pm C\sqrt{\left(\frac1{M_1}+\frac1{M_2}\right)^2 -\frac{4}{M_1M_2}\sin^2\frac{ka}{2}} }.\]The minus sign is the acoustic branch and the plus sign the optical branch. At $k=0$,
\[\omega_{\mathrm{ac}}=0, \qquad \omega_{\mathrm{op}}^2=2C\left(\frac1{M_1}+\frac1{M_2}\right).\]For the acoustic mode, $U=V$: the two sublattices move together. For the optical mode, the centre of mass remains fixed,
\[M_1U+M_2V=0,\]so the sublattices move oppositely. Oppositely charged sublattices then create an oscillating dipole, which motivates the word optical.
Phonons and the spectrum of a three-dimensional solid
Each normal coordinate $Q_{\mathbf k s}$ is a harmonic oscillator of frequency $\omega_{\mathbf k s}$. Its allowed energies are
\[E_{n,\mathbf k s}=\left(n+\frac12\right)\hbar\omega_{\mathbf k s}.\]Increasing $n$ by one creates a phonon of energy $\hbar\omega_{\mathbf k s}$ and crystal momentum $\hbar\mathbf k$ modulo a reciprocal vector. A three-dimensional crystal with $r$ atoms per primitive cell has $3r$ branches: three acoustic branches and $3r-3$ optical branches. Near $\mathbf k=0$, acoustic frequencies approach zero linearly; optical frequencies remain finite. Frequencies flatten and turn at zone boundaries because waves undergo Bragg reflection there. The complete collection of branch frequencies over the Brillouin zone is the phonon spectrum.
Dulong-Petit law
Classically, each Cartesian atomic vibration has one quadratic kinetic and one quadratic potential term. Equipartition assigns $k_BT/2$ to each, so an atom has mean vibrational energy $3k_BT$. For $N$ atoms,
\[U=3Nk_BT, \qquad \boxed{C_V=\left(\frac{\partial U}{\partial T}\right)_V=3Nk_B}.\]For one mole this is $C_V=3R\simeq24.94\ \mathrm{J\,mol^{-1}K^{-1}}$. The law is the high-temperature limit; it cannot explain the fall of $C_V$ at low temperature because it treats every mode as continuously excitable.
Einstein theory
Einstein assigns the same angular frequency $\omega_E$ to all $3N$ oscillators. The thermal mean occupation is
\[\bar n=\frac{1}{e^{\hbar\omega_E/k_BT}-1}.\]Dropping the temperature-independent zero-point energy, the internal energy is
\[U_E=3N\hbar\omega_E\bar n =\frac{3N\hbar\omega_E}{e^{\hbar\omega_E/k_BT}-1}.\]With $x=\hbar\omega_E/(k_BT)=\Theta_E/T$, differentiation uses $dx/dT=-x/T$:
\[\begin{aligned} C_{V,E} &=3N\hbar\omega_E \frac{e^x}{(e^x-1)^2}\frac{x}{T}\\ &=\boxed{3Nk_B\frac{x^2e^x}{(e^x-1)^2}}. \end{aligned}\]For $T\gg\Theta_E$, $e^x-1\simeq x$ and $C_{V,E}\to3Nk_B$. For $T\ll\Theta_E$, $C_{V,E}\simeq3Nk_Bx^2e^{-x}$, so the heat capacity vanishes exponentially.
Debye theory and the $T^3$ law
Debye retains the acoustic dispersion $\omega=v_s k$ up to a cutoff $\omega_D$ chosen to give exactly $3N$ modes. Counting states in a large volume produces a three-dimensional density proportional to $\omega^2$. In the isotropic average,
\[g(\omega)=\frac{9N}{\omega_D^3}\omega^2, \qquad 0\leq\omega\leq\omega_D,\]because
\[\int_0^{\omega_D}g(\omega)d\omega =\frac{9N}{\omega_D^3}\frac{\omega_D^3}{3}=3N.\]The thermal energy is
\[U_D=\int_0^{\omega_D} \frac{\hbar\omega}{e^{\hbar\omega/k_BT}-1}g(\omega)d\omega.\]Put $x=\hbar\omega/(k_BT)$ and $\Theta_D=\hbar\omega_D/k_B$. Then
\[U_D=9Nk_BT\left(\frac{T}{\Theta_D}\right)^3 \int_0^{\Theta_D/T}\frac{x^3}{e^x-1}\,dx.\]Differentiation gives
\[\boxed{ C_{V,D}=9Nk_B\left(\frac{T}{\Theta_D}\right)^3 \int_0^{\Theta_D/T}\frac{x^4e^x}{(e^x-1)^2}\,dx }.\]At high temperature, each mode again has energy $k_BT$, so $C_{V,D}\to3Nk_B$. At low temperature the upper limit may be replaced by infinity. Using
\[\int_0^\infty\frac{x^3}{e^x-1}dx=\frac{\pi^4}{15}\]gives
\[U_D\simeq\frac{3\pi^4}{5}Nk_B\frac{T^4}{\Theta_D^3},\]and therefore
\[\boxed{C_{V,D}\simeq\frac{12\pi^4}{5}Nk_B \left(\frac{T}{\Theta_D}\right)^3}.\]This is Debye’s $T^3$ law. It succeeds because low-temperature heat is carried by the long-wavelength acoustic modes whose three-dimensional density of states is proportional to $\omega^2$.
