Thickness of Thin Paper by Wedge-Shaped Film
practical
ug-iii
optics
interference
air-wedge
Aim
To determine the thickness of a thin sheet of paper using interference fringes formed in a wedge-shaped air film.
Apparatus
Two optically plane glass plates, thin paper, sodium vapour lamp, travelling microscope, and a supporting stand.

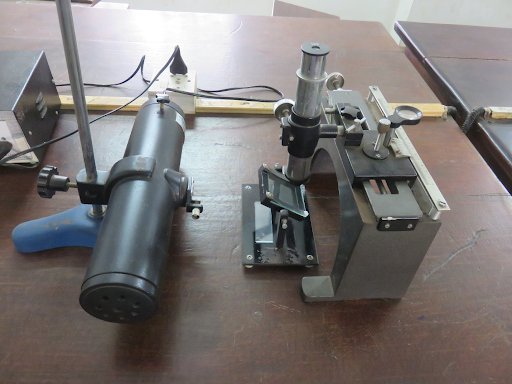

Apparatus image

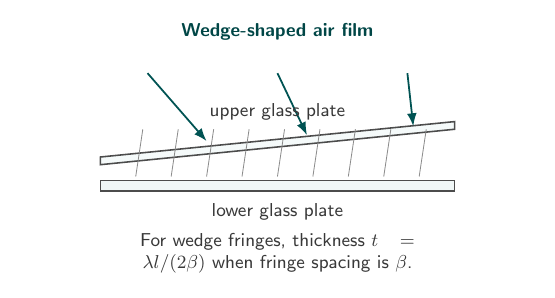

Arrangement
Theory
The two glass plates touch at one end and are separated by the paper at the other end. The air film therefore has gradually increasing thickness. If $\beta$ is the distance between two successive dark fringes and $\lambda$ is the wavelength,
\[2t\,\frac{\beta}{L}=\lambda,\]where $t$ is the paper thickness and $L$ is the distance between the contact and spacer ends. Thus,
\[t=\frac{\lambda L}{2\beta}.\]Observations
Sodium wavelength: $\lambda=589.3\,\text{nm}$; plate separation length: $L=100\,\text{mm}$.
| Trial | Position of 11th fringe (mm) | Position of 21st fringe (mm) | $\beta$ for 10 fringes (mm) |
|---|---|---|---|
| 1 | 22.10 | 37.08 | 1.498 |
| 2 | 22.24 | 37.25 | 1.501 |
| 3 | 22.05 | 37.06 | 1.501 |
Mean fringe spacing: $\beta=1.500\,\text{mm}$.
Calculation
\[t=\frac{0.0005893\times100}{2\times1.500}\,\text{mm} =0.01964\,\text{mm}=19.64\,\mu\text{m}.\]Result
The thickness of the paper is
\[\boxed{t=19.6\,\mu\text{m}}.\]Precautions
- The glass plates should be clean and optically plane.
- The paper must remain fixed at the same end throughout the experiment.
- Take readings for several fringes rather than one fringe interval.
- Focus the microscope sharply on the fringes.
Viva Questions
- Why are straight fringes obtained? The film thickness is nearly constant along lines parallel to the line of contact.
- Why is the wedge angle small? A small angle gives widely separated fringes that can be measured accurately.
- Why is monochromatic light used? It produces fringes of one wavelength and avoids overlapping fringe systems.
- What determines the fringe width? It depends on wavelength and the wedge angle.
