Half Adder Using XOR and NAND Gates

practical ug-viii digital-electronics half-adder

Aim

To construct and verify a half adder using XOR and NAND gates.

Apparatus

Digital trainer, XOR and NAND ICs, regulated $5\,\text{V}$ supply, patch cords, and LED indicators.

Figure

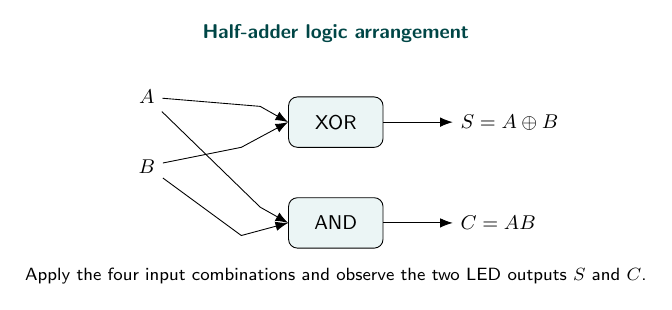

The two input lines feed the XOR gate for the sum output and the AND gate for the carry output.

Theory

Adding two one-bit numbers produces a sum and a carry. The sum is one only when the inputs are unlike, so $S=A\oplus B$. The carry is one only when both inputs are one, so $C=AB$. The NAND gate is universal because $\overline{A\cdot A}=\overline A$ and combinations of NAND gates produce AND and OR operations.

Truth table

$A$	$B$	Sum $S$	Carry $C$
0	0	0	0
0	1	1	0
1	0	1	0
1	1	0	1

Result

The XOR output gives the sum and the NAND-derived AND output gives the carry for all four input combinations.

Viva Questions

1. Why is it called a half adder? It adds two bits but has no carry-in input.
2. What is the carry for $A=B=1$? One.
3. Why are LEDs connected at the outputs? They indicate logic high and low directly.
